MoComp Bogies

Siemens Mobility at Graz Eggenberg site stands for decades of experience in development and production of bogies and pantographs. Cooperation with universities, application of innovative technologies guarantee sustainable quality of MoComp bogies. The integration of Customer Service ensures bundled competence along the entire life cycle of our products.

High tech for high-quality rail transport

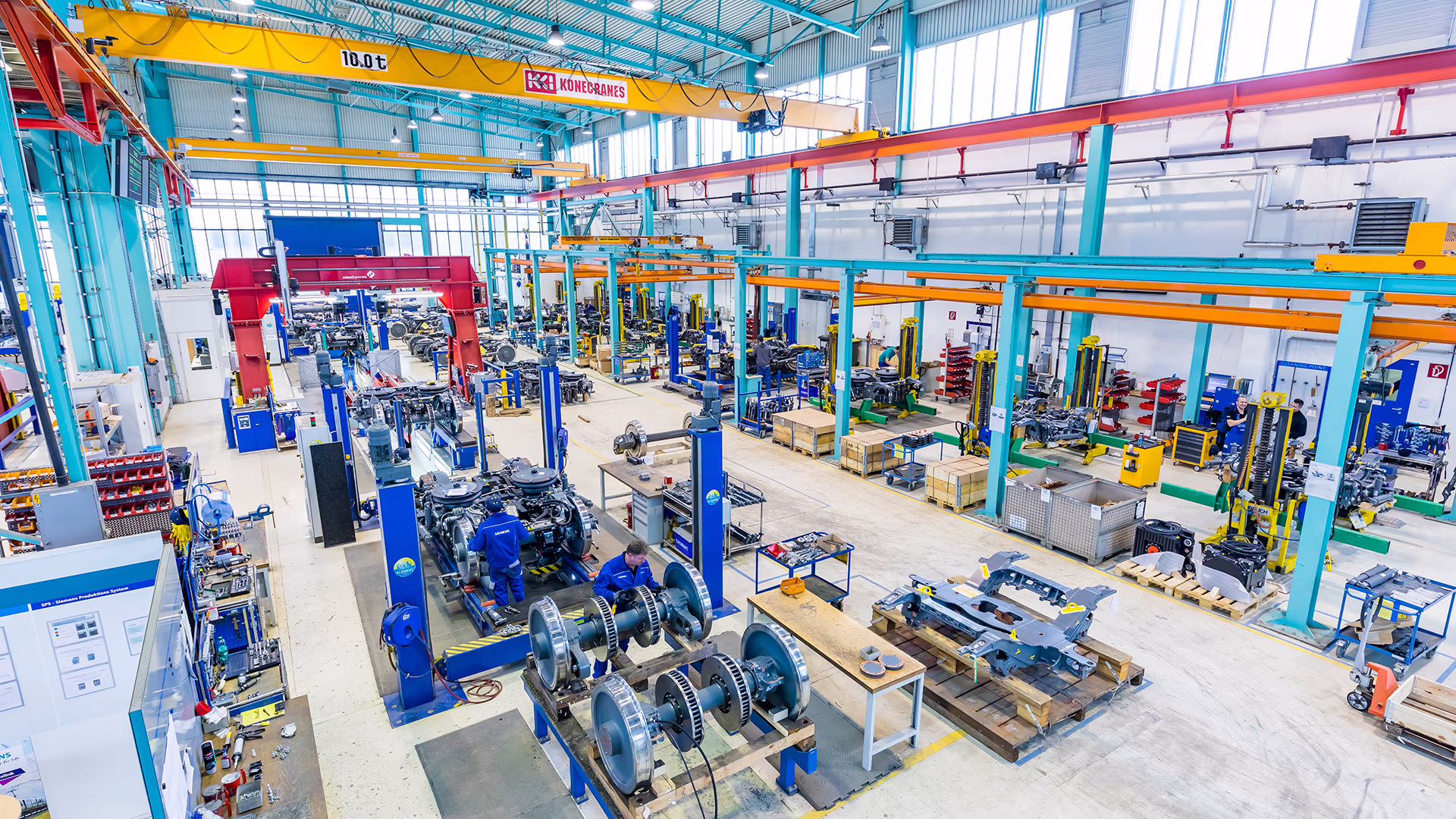

Bogies are developed, engineered, manufactured, and assembled at the Graz location. Our bogies make an important contribution to travel safety (stability, protection against derailment), enhance travel comfort, permit reduced noise emissions, and guarantee the least possible wear and tear on wheels and infrastructure.

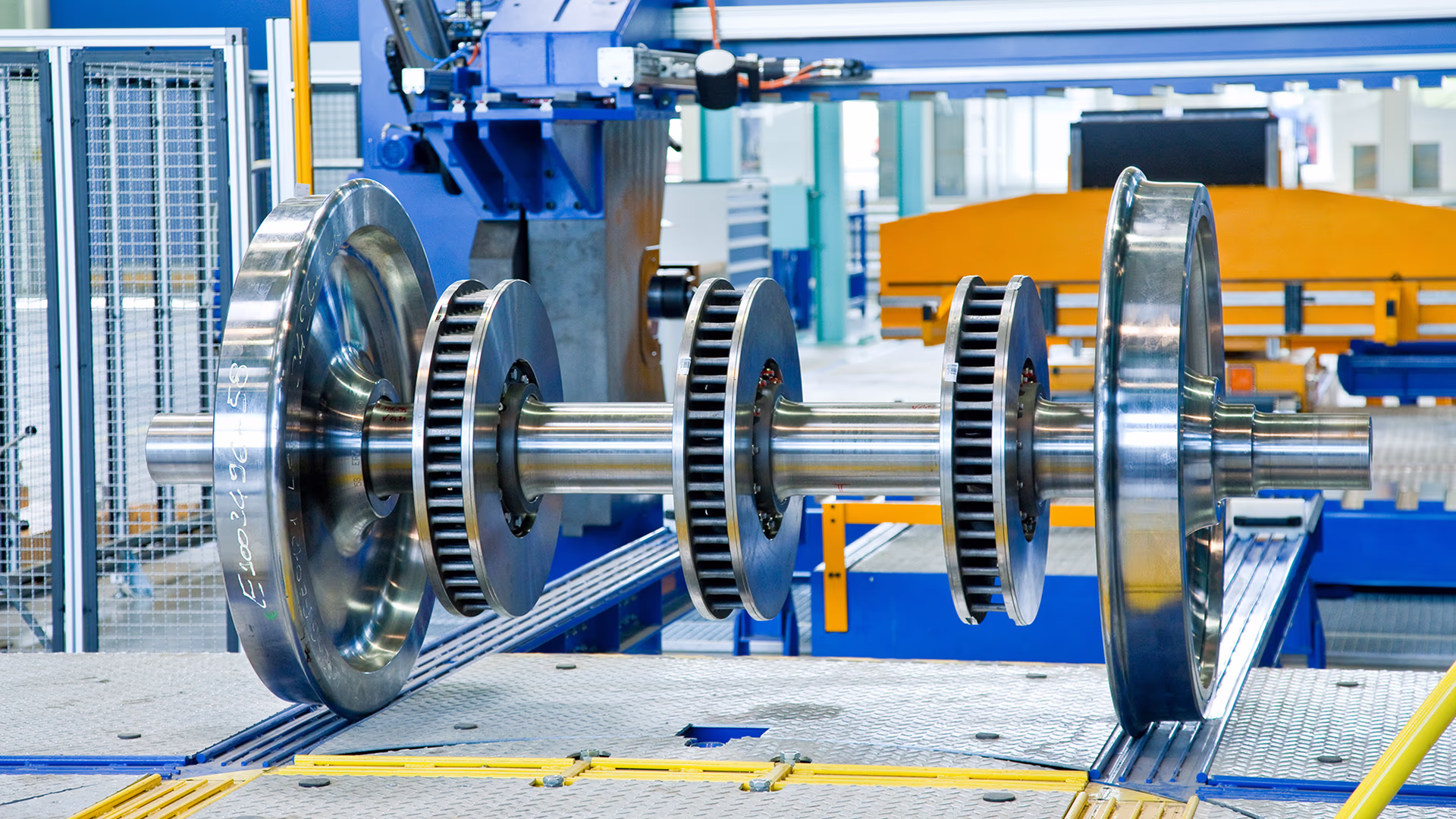

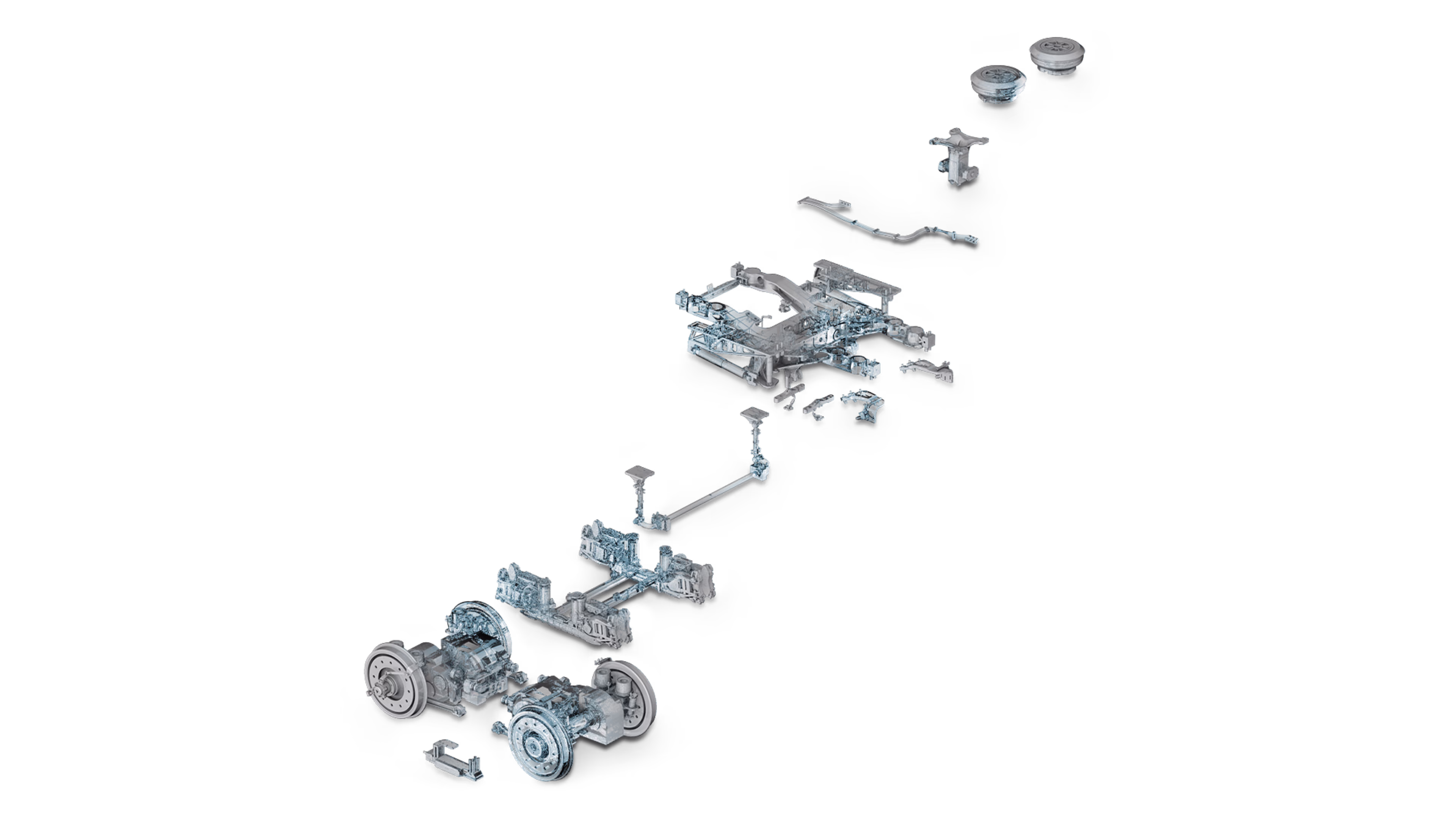

Wheelset with wheelset bearings, wheelset guide, primary suspension, motor, and gearbox

Braking system with wheel disc brake and electro-magnetic track brake

Anti roll bar

Bogie frame

Pipework and cabling

Center pin

Secondary suspension

Success on the world’s rails

Our bogies are characterized by constant innovation and decades of experience, qualifying them for use in all modern rail vehicles. Light, economical, reliable, and comfortable, they perform your customers’ tasks exactly as you want them to: inconspicuously but on the highest level.

Innovations that help you get ahead

We offer you market- and future-oriented system solutions that boost your competitiveness, both now and in the future. The future begins today – with innovations that focus on the growing requirements for energy efficiency and resource saving while setting new standards in terms of safety and quiet operation.

Optimized lifecycle costs

A bogie’s maintenance costs can amount to as much as 300 percent of the purchase price over the whole lifecycle. For many operators, this cost factor is becoming increasingly significant. The main factors that reduce maintenance costs for bogies are easy accessibility and removal of replaceable parts, optimized stiffness of elastic parts, and the use of active elements in the wheelset guide to reduce wheel wear. Diagnostic systems in the bogie also permit condition-based maintenance of the bogie and its components.

Consistently light-weight design pays off

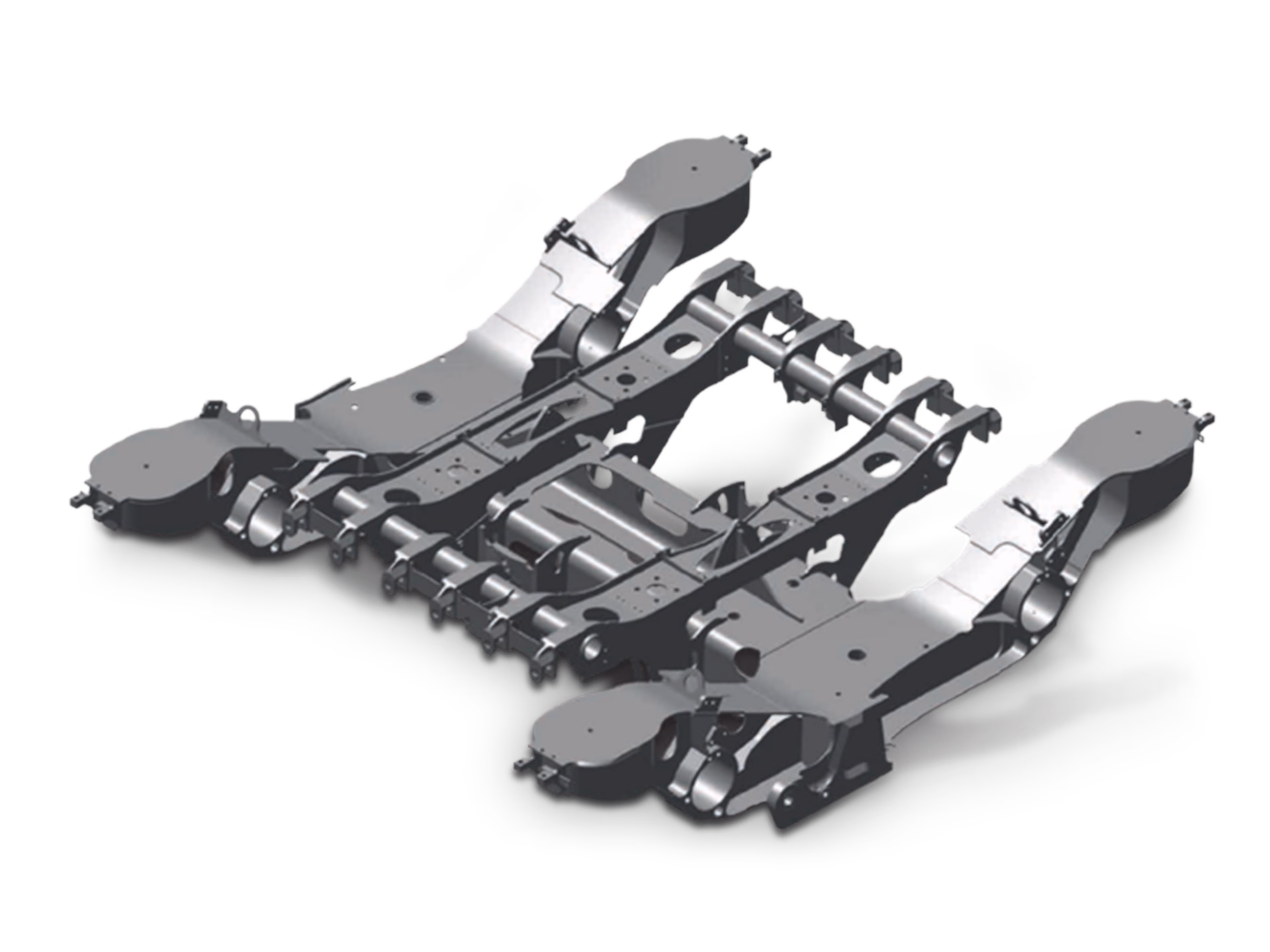

Energy costs are part of the lifecycle cost (LCC). Energy efficiency in bogies is mainly achieved by reducing the weight of heavy components such as bogie frames and wheelsets. State-of-the-art construction and calculation methods make it possible, for example, to reduce the weight of the frame by up to 40 percent.

Wonderfully quiet operation

Traveling comfort and quiet operation are guaranteed by the bogie. Siemens bogies from Graz satisfy the highest demands for comfort, whether in sleepers and couchettes, on coaches, or in high-speed transport.

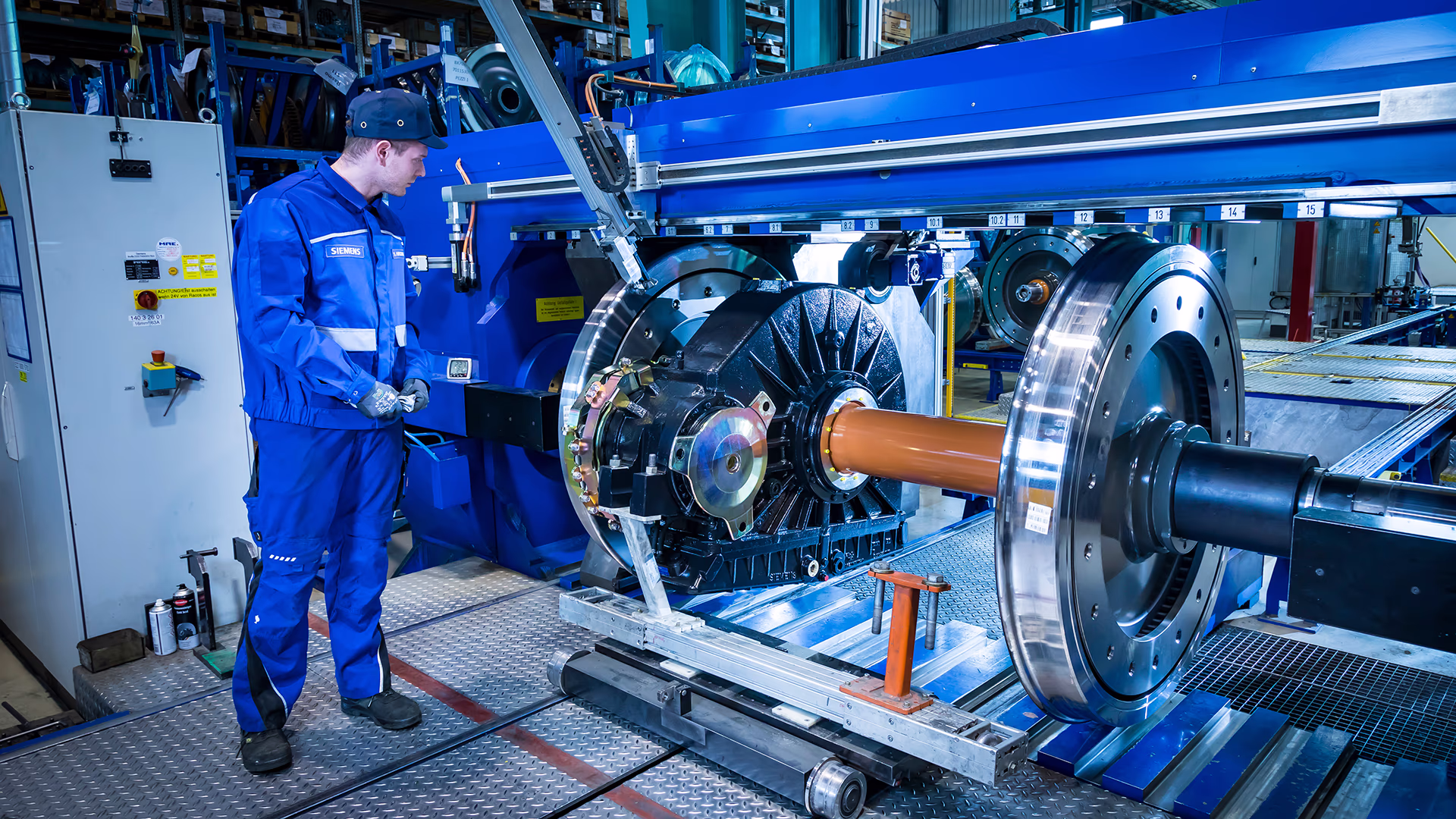

Maximum safety

From the very start, our job as manufacturer is to ensure the safety of the finished vehicle during each individual step of development and production. We do this using appropriate processes as well as state-of-the-art tools and simulation methods. Diagnostic and monitoring systems in the bogie permit real-time monitoring of component functions that extends all the way to obstacle and derailment detection.
