MoComp Traction Motors

Key Visual Traction Motor

More than 90,000 MoComp drives and traction motors are in use worldwide in all types of rail vehicles. From streetcars and light rail vehicles to high-speed trains and powerful locomotives – with all relevant certificates (such as ISO/TS 22163 (IRIS) and Q1 (DB AG supplier certificate)). On request with manufacturing in numerous countries - but always with global servicing.

Learn more about our traction motors and drives from Siemens Mobility:

Contact

Our traction motors

Persuasive in every detail

Traction motors from Siemens Mobility stand for reliability, longevity, and energy-efficiency. We use our long track record of experience in development, manufacturing, and operation to configure the optimal solution to your requirements.

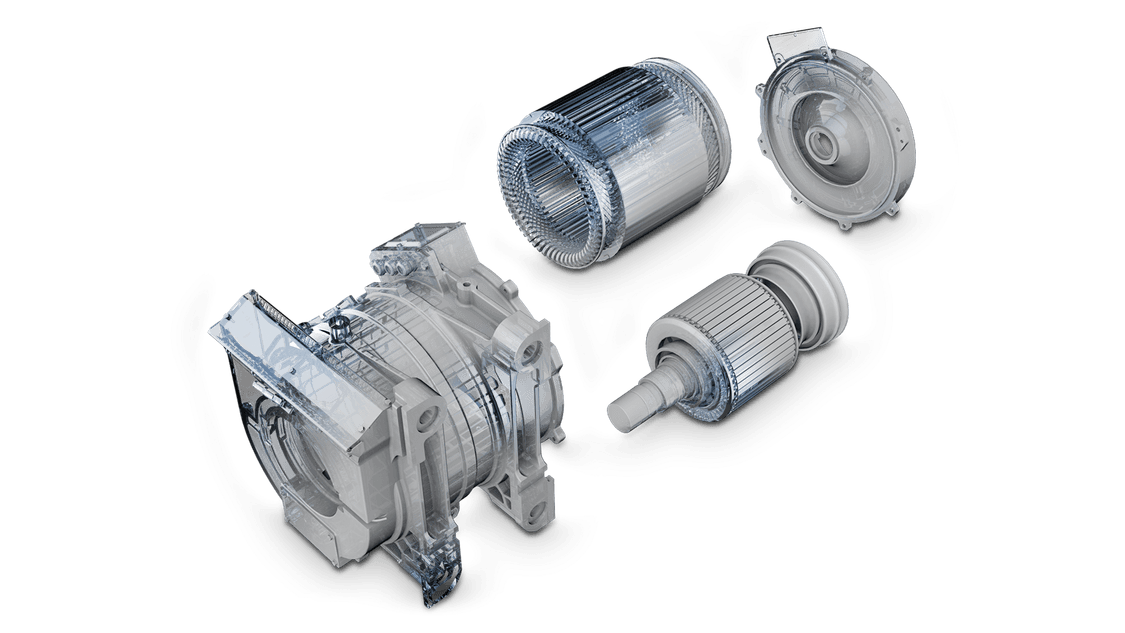

Durable and lightweight cast housings and end shields

Durable rolling bearings with reliable sealing

Energy-efficient copper cage rotors

High-quality, robust stator windings (shaped wire) and MICALASTIC®-THD in thermal class 220

Customized traction motors and drives

A smoother ride with our motors

Traction motors and drives from Siemens Mobility are in use in many rail vehicles around the world – for good reason.

High quality, optimal reliability

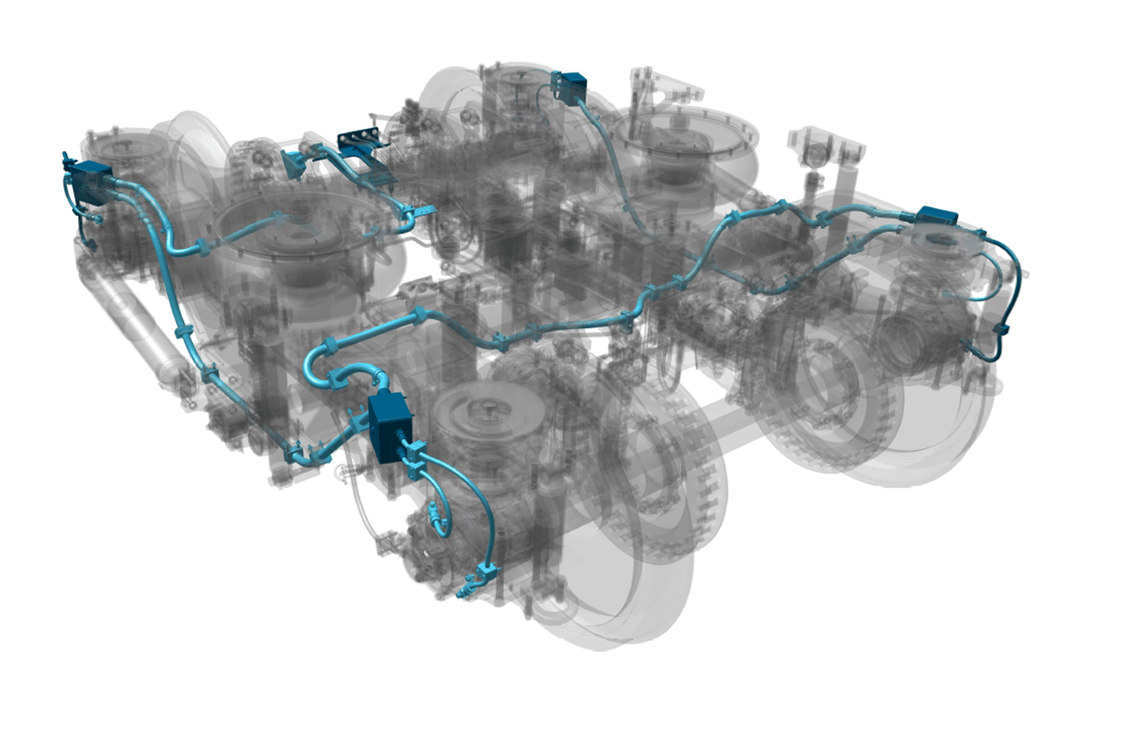

Our Traction motors and drives harness all the advantages of digitalization. While customer requirements are the starting point, our experts also incorporate field data into their work to create a digital twin. The electrical design is then optimized for performance, robustness, and thermal characteristics using modern analytics. The results of simulations are verified in our own test center and in real system checks on the vehicle and the intelligence gained flows back into future development. Quality and longevity are assured by comprehensive testing of 100 percent of the components during manufacturing. In addition to testing the individual component, the compatibility of the entire system of gears, motors, converters, controls, and transformers is also checked in our system test center.



Advanced design

Traction motors from Siemens Mobility are known for their compact design that enables the drive system to be optimized to the available space. The high-value flat-wire stator winding has an especially high power-to-weight ratio as well as mechanical stability. The proven insulation system, MICALASTIC®, enables open circuit cooling and self-ventilation up to a high power level, reducing maintenance costs, saving space, and increasing reliability.

Extremely energy efficient

The traction asynchronous motors use copper in the rotor design, which results in low losses due to the metal’s superior conductivity. Lower losses translate into higher energy efficiency and an increased power-to-weight ratio. Our permanent-magnet motors are ideal for applications with very demanding efficiency requirements: No energy is needed to set up the rotor field. If required, our most powerful motors can also be encapsulated and air-cooled.

Comprehensive portfolio

Traction motors and drives for all rail applications

Our drive system portfolio covers the entire spectrum of rail applications. Here are a few examples from the multitude of possible combinations of traction motors and gears.
Typical applications

Full force ahead with Siemens Mobility

Optimal Traction performance, low noise, and a high comfort level for passengers: With traction components from Siemens Mobility, your trains will operate reliably, economically and efficiently.

Technical specifications

Rated power [kW]
50 to 190
Rated speed [rpm]
1,580 to 2,500
Maximal operating speed [rpm]
3,570 to 5,250
Rated torque [Nm]
210 to 1,010
Cooling

Self ventilated / open circuit cooled

Water jacket / closed circuit cooled

Self ventilated / closed circuit cooled

Weight [kg]
350 to 450
Rated power [kW]
90 to 300
Rated speed [rpm]
1,470 to 3,300
Maximal operating speed [rpm]
3,460 to 8,000
Rated torque [Nm]
430 to 1,260
Cooling

Self ventilated / open circuit cooled

Forced ventilated / open circuit cooled

Water jacket / closed circuit cooled

Self ventilated / closed circuit cooled

Weight [kg]
350 to 600
Rated power [kW]
140 to 510
Rated speed [rpm]
1,570 to 2,500
Maximal operating speed [rpm]
3,250 to 6,000
Rated torque [Nm]
640 to 2,030
Cooling

Self ventilated / open circuit cooled

Forced ventilated / open circuit cooled

Water jacket / closed circuit cooled

Self ventilated / closed circuit cooled

Weight [kg]
450 to 1,100
Rated power [kW]
320 to 1,250
Rated speed [rpm]
1,500 to 4,150
Maximal operating speed [rpm]
3,650 to 5,900
Rated torque [Nm]
770 to 7,780
Cooling

Self ventilated / open circuit cooled

Forced ventilated / open circuit cooled

Self ventilated / closed circuit cooled

Weight [kg]
530 to 780
Rated power [kW]
130 to 1,630
Rated speed [rpm]
240 to 2,280
Maximal operating speed [rpm]
1,460 to 4,300
Rated torque [Nm]
2,920 to 12,990
Cooling
Forced ventilated / open circuit cooled
Weight [kg]
1,630 to 2,980

Selected references
