Avenio – fits your city

Your city is unique – and so are your requirements for public transportation. The Avenio family with its two lines, Avenio and Avenio M, offers you custom solutions that are designed just for your city. All this is based on a common, modular toolkit of proven systems and components representing more than 135 years of unique experience: Siemens built the world’s first electric tram in 1881 and also has 25 years of experience in 100% low-floor technology.   Whether you need innovative single-articulated or flexible multi-articulated trams, the members of the Avenio family will fit harmoniously into your cityscape and adapt to your existing infrastructure and your requirements for capacity, interior layout, and exterior design.

Contact us

100% low-floor technology and flexibility on all tracks

Our modular Avenio family in 100 percent low-floor technology covers all major applications in existing tramway networks or new projects. The product family is represented by our single-articulated tram Avenio and our multi-articulated tram Avenio M. Both offer various track widths and vehicle lengths to flexibly match individual customer requirements.

Your advantages with the Avenio family

One special feature of our Avenio family is the bogie with triple suspension and two outboard traction units that mechanically couple the wheels lengthwise for the proven longitudinal wheelset technology. The bogie additionally features a low center of gravity and minimized unsprung mass. All of this combined offers you numerous benefits:

Excellent ride comfort

  • Continuous, 100% low floor
  • Outstanding ride performance both on straights and when cornering

Noise abatement measures

  • ­Low wheel/rail load keeps noise emissions down
  • “Noiseless” electric brakes slow tram down to a stop

High maintenance-friendliness

  • ­­Greatly extended tire life
  • Easy on track infrastructure
110
Avenio – the modern low-floor tram

Single- or multi-articulated tram

Whatever fits best.

Single-articulated Avenio – a rapid ride as tram or light railway

The outstandingly comfortable Avenio single-articulated tram with light rail character redefines trams – and combines the benefits of the single-articulated concept with the proven modular elements of the Avenio family. Modules of about nine meters in length are supported on a centrally positioned pivoting bogie unit.

Multi-articulated Avenio M – drive on through even the tightest curves

The Avenio M is a multi-articulated tram with outstanding curve-negotiating characteristics. It builds on the experience gained with the Combino, the world’s first modular tram platform, together with the success of the Avenio generation. Intermediate modules are suspended between short bogie modules, enabling the Avenio M to maneuver even through twisted sections.

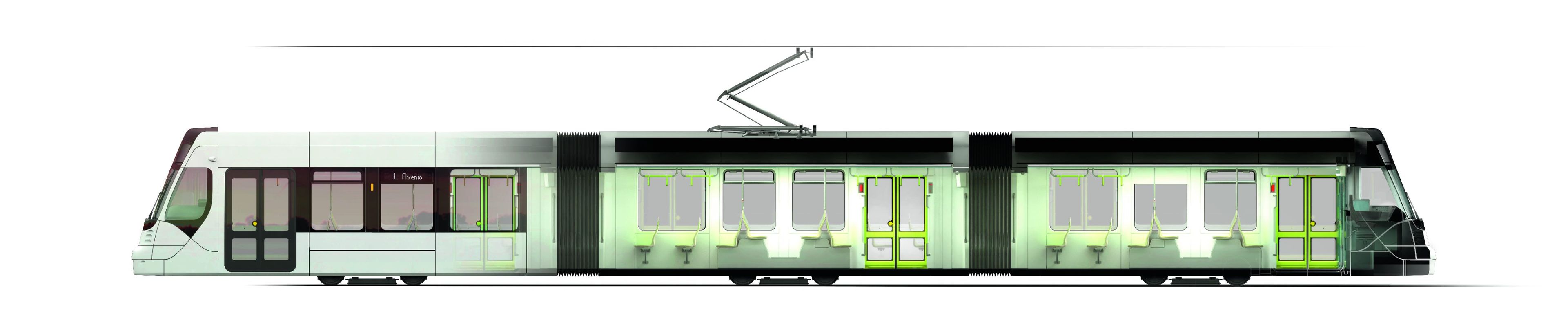

Single-articulated tram Avenio – side view

Vehicle

  • Vehicle length from 18 m to 72 m (2–8 modules)
  • Vehicle width of 2.3 m, 2.4 m, 2.55 m, or 2.65 m
  • ­Car body of lightweight steel construction
  • ­Optimal corrosion protection from weather-resistant structural steel (COR-TEN) and cathodic dip coating
  • ­Track gauge of 1,435 mm for standard gauge networks
  • ­Maximum axle load of only 10.5 t with car width of 2.65 m: lowest axle load of all 100% low-floor vehicles
  • ­Bogies with up to 4.5° rotation and triple suspension
  • Maximum speed: 80 km/h

Single-articulated concept

  • ­Single-articulated tram with modules of approximately 9 m in length supported on a centrally positioned bogie unit
  • ­Pivoting bogies and articulation joints between modules make narrow curve radii possible
  • Low-wear and ride-comfort-optimized combination of articulation design, bogie, and traction unit, with no need for additional articulation dampers

High capacities

  • ­Best possible use of space, with 16 high-quality seats in the bogie area
  • ­More than 540 passengers in eight-section “maxi” version
  • ­Up to 700 passengers at full capacity
  • Wide double doors cover up to 30% of the vehicle length, including directly behind the driver’s cab, making for quick boarding and alighting
